What is a Resistor?
A resistor is a passive electrical component that resists the flow of electric current. It is used to control voltage and current in circuits, protect components, and divide voltage.
- Unit: Ohm (Ω)
- Symbol in schematics:
R - Ohm's Law:
V = I × R
Types of Resistors
Resistors come in different types depending on material, construction, and application.
- Fixed Resistors: Standard resistors with a set resistance.
- Variable Resistors (Potentiometers): Adjustable resistance for tuning circuits.
- Thermistors: Temperature-dependent resistors.
- Photoresistors (LDRs): Resistance changes with light intensity.
- Wire-wound: High-power applications with precise resistance.

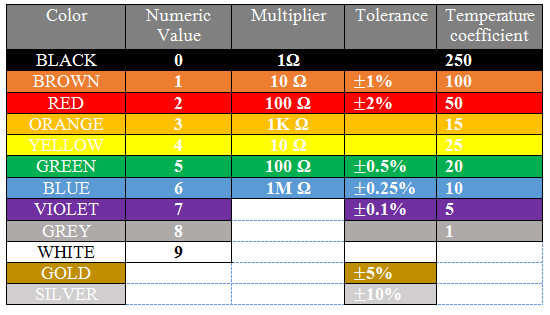

Resistor Color Codes
Most resistors have color bands to indicate resistance value and tolerance. The standard 4-band color code is:
- Band 1: First significant digit
- Band 2: Second significant digit
- Band 3: Multiplier
- Band 4: Tolerance
Color Codes Example:
Black = 0, Brown = 1, Red = 2, Orange = 3, Yellow = 4,
Green = 5, Blue = 6, Violet = 7, Grey = 8, White = 9
Tolerance: Gold = ±5%, Silver = ±10%
Calculating Resistance
Use the color code or Ohm's Law for calculations. For a 4-band resistor:
// Example: Red, Violet, Yellow, Gold
Band1 = Red = 2
Band2 = Violet = 7
Multiplier = Yellow = x10,000
Resistance = (27 × 10,000) Ω = 270,000 Ω = 270 kΩ
Tolerance = ±5%
Power Rating
Resistors dissipate power as heat. Choose a resistor with a higher power rating than required:
P = I² × R
or
P = V² / R
Common ratings: 1/8W, 1/4W, 1/2W, 1W, 2W, etc.
Applications of Resistors
Resistors are everywhere in electronic circuits. Examples:
- Voltage dividers for sensors or microcontrollers
- Pull-up/pull-down resistors for digital inputs
- Current limiting for LEDs
- Feedback in amplifiers
- Signal conditioning circuits
Practical Usage Tips
- Always check resistor tolerance before precise measurements.
- Use wire-wound resistors for high current or power applications.
- Combine resistors in series or parallel to achieve non-standard values.
- Keep resistor leads short for high-frequency circuits to minimize parasitic inductance.
Advanced Concepts
Series: Total resistance is the sum of individual resistances.
R_total = R1 + R2 + R3 + ...
Parallel: Reciprocal of total resistance is the sum of reciprocals of individual resistances.
1/R_total = 1/R1 + 1/R2 + 1/R3 + ...
Some resistors change resistance with temperature. Coefficient expressed in ppm/°C.
Lower tolerance resistors are more precise and expensive. Typical tolerances: ±1%, ±5%, ±10%.
Resistor Color Code Quick Reference
0
1
2
3
4
5
6
7
8
9
±5%
±10%
Choosing Resistors for Projects
220Ω–1kΩ
1kΩ–100kΩ
1Ω–100Ω wire-wound
